Steel framing changes what a house can do. That sounds like a bold statement, but walk through any high-end neighbourhood in West Vancouver or the British Properties and look at the architecture — the 30-foot clear spans across living rooms, the cantilevered decks that float over steep grades, the floor-to-ceiling glass walls that would buckle a wood frame. None of that happens without structural steel.
We fabricate and install steel for residential projects across Vancouver, Burnaby, North Vancouver, and the rest of the Lower Mainland. And over the past decade we’ve watched steel go from a niche material — reserved for commercial buildings — to a go-to choice for architects designing custom homes. Here’s why that shift is happening, what it actually costs, and what you should know before specifying steel for your next project.
Why architects are specifying steel for custom homes
Wood framing works fine for conventional houses. But the moment a design calls for something unconventional — a 24-foot open span, a cantilevered balcony, a two-storey curtain wall — wood starts fighting back. You end up with deeper beams, more posts, transfer beams stacked on transfer beams, and a framing package that gets complicated fast.
Steel solves that.
A single W12x26 beam can clear-span 20 feet under typical residential loads. Step up to a W14x34 and you’re looking at 26 feet or more. HSS (hollow structural sections) like 8x8x3/8 tubes give you clean post-and-beam connections that disappear inside walls. The material is stronger pound-for-pound, so the members are smaller, the connections are tighter, and the architecture gets the breathing room it needs.
That’s the real reason architects specify steel. It’s not about strength for strength’s sake — it’s about design freedom. Open floor plans. Large glazing without mullions everywhere. Roof lines that cantilever 8 or 10 feet past the building face. Steel makes the structure serve the design instead of the other way around.
Steel vs. wood framing — an honest comparison
We’re not going to pretend steel is always the right call. For a straightforward 2,000 sq ft rancher with 8-foot ceilings and standard window openings, dimensional lumber does the job and costs less. No argument there.
But for custom homes — especially the kind being built across North Vancouver, Coquitlam, and the West Side — the comparison tilts toward steel quickly:
Span capability. Wood trusses can span 24 feet, but they’re deep (14 to 18 inches) and limit what you can do with ceiling heights. A steel W-shape at the same span might be 10 inches deep. That’s 4 to 8 inches of ceiling height you just gained — or mechanical space you freed up.
Dimensional stability. Wood shrinks, warps, and twists as it dries. That’s why drywall cracks show up six months after move-in. Steel doesn’t shrink. Period. Your finish trades will thank you.
Fire resistance. Steel is non-combustible. For homes built close to the wildland-urban interface — common in parts of North Vancouver and the District — that matters for insurance and code compliance.
Speed of erection. A steel frame for a 3,000 sq ft home can go up in 3 to 5 days with a small crew and a crane. Try doing that with stick framing.
Where wood wins: cost on simple structures, familiarity for most residential crews, and easier field modifications with a circular saw. Where steel wins: everything else on a custom build.
Seismic performance — why it matters in BC
Vancouver sits in one of the most seismically active zones in Canada. The BC Building Code assigns our region a seismic hazard index that demands real attention to lateral load design. And steel excels here.
Steel is ductile. That means it bends before it breaks. During an earthquake, a steel moment connection — where the beam is rigidly welded to the column — absorbs energy by flexing slightly rather than fracturing. Wood connections, by contrast, rely on nails and bolts that can pull out or split the grain under cyclic loading.
For custom homes with large open volumes, steel moment frames are often the most practical way to resist lateral forces without cluttering the floor plan with shear walls. Your engineer designs the moment connections, we fabricate them in our shop to exact specifications, and the result is a structure that performs under seismic load while keeping the open layout your architect drew.
Every structural steel project we deliver is fabricated under our C.W.B. certification to CSA W47.1. That certification means our welding procedures, our welders, and our quality control have been audited and approved by the Canadian Welding Bureau. It’s not optional for structural work — it’s the standard that engineers and building inspectors look for.
What structural steel costs for a residential project
Here’s the number everyone wants: $25 to $50 per square foot for a structural steel package on a custom home. That range covers engineering, shop drawings, fabrication, delivery, and erection.
The spread depends on complexity. A straightforward beam-and-post frame for a 2,500 sq ft home — say six beams and eight columns — lands closer to $25/sq ft. A 4,000 sq ft home with moment connections, cantilevered sections, a steel stair structure, and misc. metals (lintels, embed plates, ledger angles) pushes toward $40–$50/sq ft.
A few factors that move the price:
- Steel tonnage. Heavier sections cost more per pound for material and handling.
- Connection complexity. Simple shear connections are fast to fabricate. Full-penetration moment welds take longer and require more inspection.
- Finish requirements. Raw steel with a primer coat is the baseline. Hot-dip galvanizing adds $0.15–$0.25 per pound. Powder coating for exposed steel — like a feature beam or an exterior canopy — adds more.
- Site access. Tight lots in Vancouver or steep driveways in North Vancouver can limit crane placement and add to erection costs.
Compare that to engineered wood framing at $15–$25/sq ft, and yes, steel costs more upfront. But factor in the reduced framing time, fewer callbacks for shrinkage issues, and the design possibilities it opens up, and the math starts to work — especially on homes valued above $2 million, where the structure is a fraction of the total build cost.
The fabrication timeline — from shop drawings to install
Most homeowners and even some contractors underestimate how long steel fabrication takes. Here’s a realistic timeline:
Weeks 1–2: Shop drawings and engineering coordination. After the structural engineer’s design is complete, we produce detailed shop drawings showing every member, every connection, every bolt hole. These go back to the engineer for review. If there are RFIs (requests for information) — and there usually are — add a few days for back-and-forth.
Weeks 3–4: Material procurement. We order steel from the mill or service centre. Standard W-shapes and HSS sections are usually available within 1 to 2 weeks in the Lower Mainland. Specialty sizes or heavier sections can take longer.
Weeks 5–8: Fabrication. Cutting, drilling, welding, fitting. Every piece is laid out on our shop floor, trial-fitted, then welded per the approved drawings. Moment connections get extra attention — full-penetration groove welds, UT (ultrasonic testing) inspection where specified, and fit-up checks against tolerances.
Weeks 8–9: Finishing. Primer coat, hot-dip galvanizing, or powder coating depending on the spec.
Week 9–10: Delivery and erection. Steel shows up on a flatbed, crane lifts it into place, our crew bolts and welds the field connections. A typical residential steel package goes up in 3 to 5 days.
Total: 6 to 10 weeks from approved shop drawings to steel standing on site.
The key takeaway for builders: get your structural engineering done early. The biggest delays we see aren’t in our shop — they’re in waiting for approved drawings and resolved RFIs before we can start.
How shop fabrication reduces field time
This is one of steel’s underrated advantages for residential builds. Nearly all the work happens off-site, in a controlled shop environment.
When a wood framing crew builds on-site, they’re dealing with weather, site access, material storage, and the inevitable measuring-and-cutting cycle that eats time. Our shop is climate-controlled, has overhead cranes for handling heavy sections, and has layout tables where we can position entire frames for trial assembly.
By the time steel arrives on your job site, every piece is cut to length, every hole is drilled, every connection plate is welded on. The field crew’s job is assembly, not fabrication. That’s a different task — and a faster one.
For a typical Vancouver residential project, switching from an all-wood structure to a steel-and-wood hybrid (steel primary frame, wood infill and floor joists) can shave 2 to 3 weeks off the framing schedule. On a tight build timeline — and in Vancouver, when aren’t timelines tight? — that’s meaningful.
Common residential steel applications
Not every home needs a full steel frame. Here are the applications we see most often:

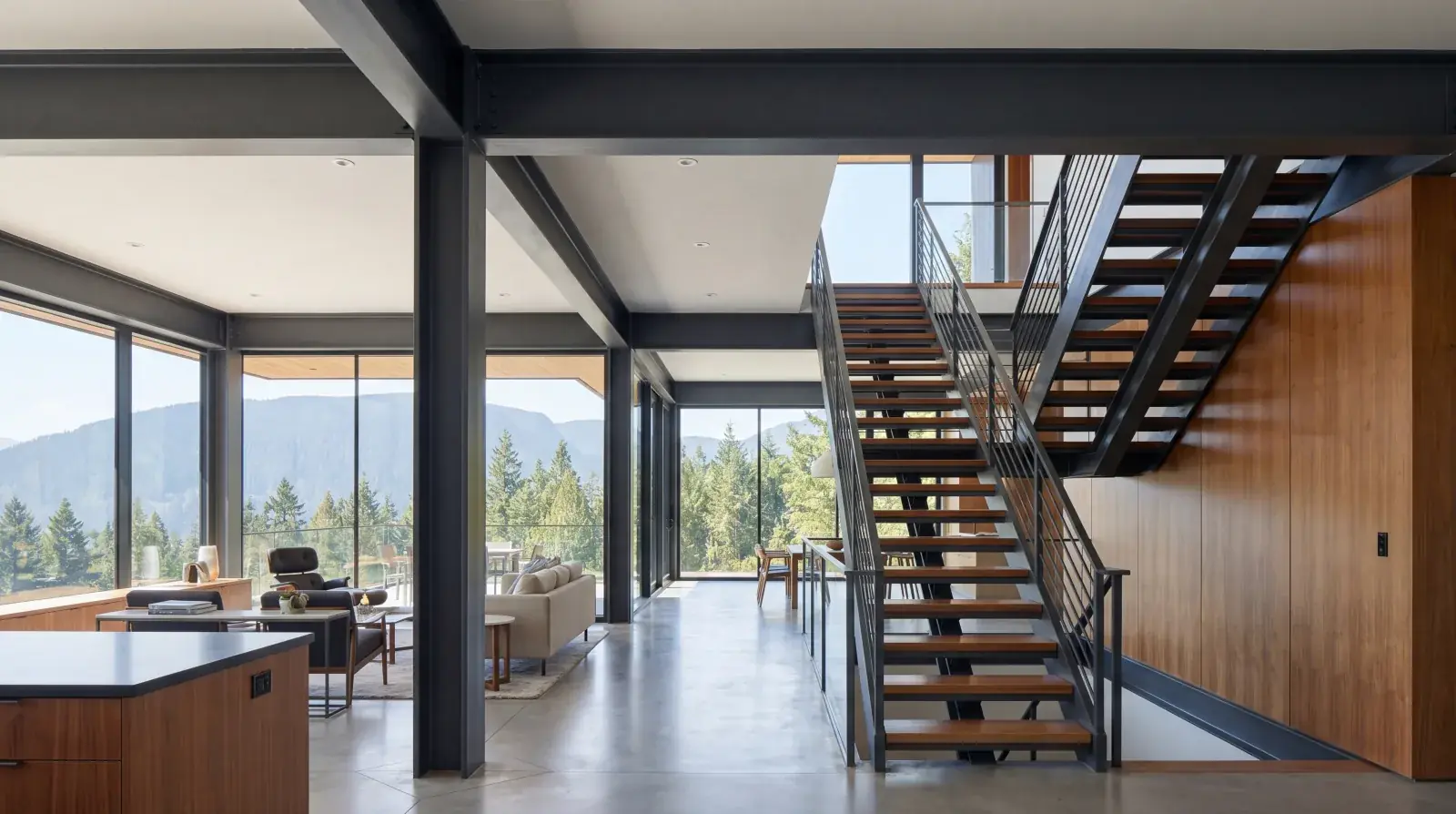

Beam-and-post frames
The most common use. Steel beams carry the main loads — spanning the living room, supporting upper floors over a garage, or holding up a roof without interior bearing walls. Posts are typically HSS tubes concealed inside walls. The rest of the house frames conventionally in wood.
Cantilevered decks and balconies
Vancouver’s hillside lots almost demand cantilevered outdoor spaces. Steel makes it possible to cantilever 6 to 10 feet beyond the building face — something that’s extremely difficult with wood alone. We’ve fabricated cantilevered balcony frames for homes in West Vancouver and Burnaby that hang out over 45-degree slopes with nothing but air beneath them.
Large openings and headers
When an architect draws a 16-foot sliding door opening or a corner window with no post, someone has to carry the load above it. A steel lintel or header beam handles that without the depth that a built-up wood header would require.
Steel staircase structures
A steel stringer stair — especially a mono-stringer or floating design — is a statement piece. The structural steel does double duty as both the load path and the visual feature. We’ve written about the building permit process for custom stairs in Vancouver if you’re considering this for your project.
Misc. metals
The small stuff that holds a building together: embed plates for concrete connections, ledger angles for floor framing, column base plates, knife plates for beam pockets. These pieces don’t get attention on Instagram, but they’re what makes the structure work.
Steel’s sustainability story
Steel is the most recycled material on earth. Over 90% of structural steel in North America contains recycled content, and every piece of steel ever made is still recyclable. When a building comes down 80 years from now, the steel gets melted and reformed into new members.
Compare that to pressure-treated lumber that ends up in landfill, or engineered wood products that can’t be meaningfully recycled. Steel’s lifecycle impact is strong — especially when you account for its longevity. A steel frame doesn’t rot, doesn’t get eaten by insects, and doesn’t lose structural capacity over time.
For projects targeting green building standards or simply trying to make responsible material choices, structural steel is a legitimate option. It’s not the cheapest material. But measured over the life of the building, it’s hard to beat.
Vancouver’s climate and steel — addressing the moisture question
People ask about rust. Fair question. Vancouver gets 1,200 mm of rain a year, and the marine air carries salt, especially closer to the coast in West Vancouver and North Vancouver.

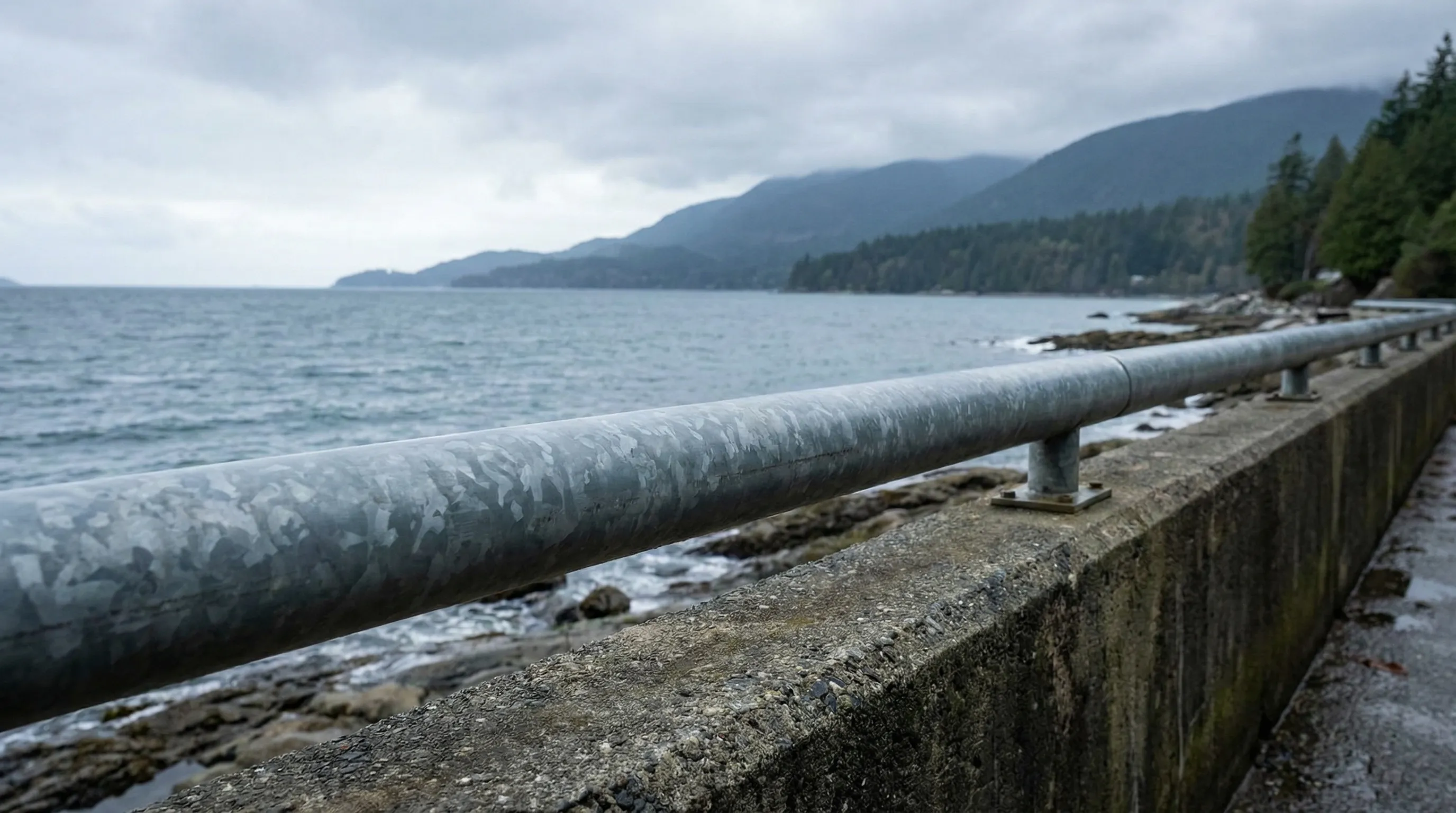

Here’s the reality: properly finished steel doesn’t rust. A standard shop-applied primer coat protects steel that will be enclosed inside walls and ceilings. For exposed exterior steel — canopy frames, balcony structures, exterior stairs — we specify hot-dip galvanizing, which bonds a zinc layer to the steel surface and provides 50+ years of corrosion protection. Add a topcoat of powder coating for colour, and you have a finish that handles Vancouver weather without maintenance.
The problems occur when steel is left unprotected during construction or when finishes are damaged and not touched up. We detail our finishing specs in our shop drawings so the field crew knows what to protect during installation.
Getting started with steel for your home project
If you’re an architect, contractor, or homeowner considering structural steel for a residential project in Vancouver or the Lower Mainland, here’s the practical path forward:
Start with your structural engineer. They’ll determine where steel makes sense in your design and size the members accordingly. If you don’t have an engineer yet, we can recommend several who specialize in residential steel in the Vancouver area.
Get us involved early. The earlier we see the drawings, the more input we can offer on connection details, member sizing for fabrication efficiency, and erection sequencing. We’ve seen plenty of cases where a small change at the engineering stage saves significant time and cost in the shop.
Budget realistically. Use the $25–$50/sq ft range as your starting framework, and get a proper quote once engineering is underway.
Plan the timeline. Allow 6 to 10 weeks from approved shop drawings. Back-calculate from your framing start date and make sure the engineering is done in time.
We fabricate structural steel, misc. metals, and architectural metalwork for residential and commercial projects across the Lower Mainland. If you’ve got drawings ready or just want to talk through whether steel makes sense for your build, request a quote and we’ll get back to you within one business day.
