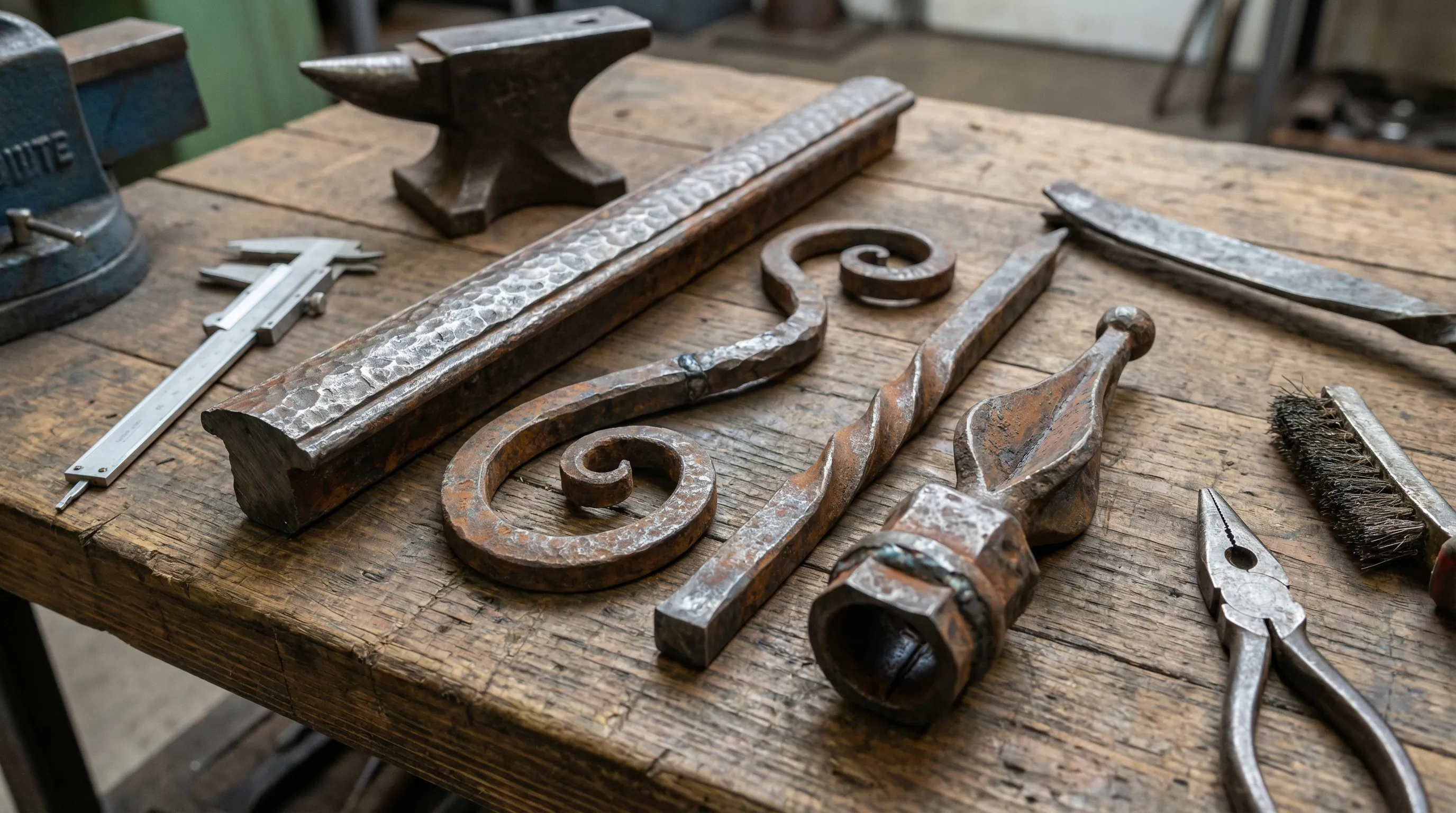

Almost every conversation we have about heritage or custom hand-forged ironwork starts with a vocabulary problem. The client points at a detail in a photo and says, “I want one of those,” and we have to figure out what “that” is actually called. Traditional ironwork has a vocabulary that goes back centuries, and knowing the names of the parts is the difference between a clear conversation and a mangled fabrication. Here’s every component of a hand-forged iron railing, named and explained in the context of Metro Vancouver custom work.
The main structural elements
Every iron railing — heritage, modern, welded, forged — has the same set of structural parts. The differences between a basic welded railing and a hand-forged heritage piece come from how these parts are made and joined, not from what they are.
Top rail. The upper horizontal member of the railing. In residential use it’s usually the graspable handrail under BC Building Code Section 9.8.8. Hand-forged top rails are typically flat bar, half-round, or square stock that’s been planished — hammered on one face for a textured, tactile profile. The hammer marks are one of the signatures of hand-forged work; a machine-rolled rail will be perfectly smooth.
Bottom rail. The lower horizontal member that anchors the pickets at their feet. On some simple designs the bottom rail is omitted and pickets mount directly into the stair stringer or deck surface. When present, it’s usually the same profile as the top rail, though sometimes a lighter bar.
Posts. The vertical structural members that carry the load into the stair stringer, deck framing, or wall. Posts are typically heavier than pickets — square tube or solid square bar — and are the element that has to meet the BC Building Code’s 1.0 kN point load requirement. Post spacing is usually 4–6 ft on a typical residential installation.
Pickets (or balusters). The vertical infill elements between posts. Pickets are usually 1/2 inch or 5/8 inch square solid bar, spaced to pass the 100 mm sphere rule from the BC Building Code. On a Shaughnessy heritage railing you’ll see turned or forged balusters with shaped profiles; on a basic utility railing you’ll see straight pickets.
The joinery — where hand-forged work differs from welded
Modern welded ironwork joins components with arc welds, ground smooth and hidden inside the finish. Traditional hand-forged ironwork uses joinery techniques that predate arc welding entirely, and those techniques define the visible character of a heritage piece.
Collars. Short strips of iron wrapped around a joint between two elements — for example, binding a scroll to a picket. The collar is heated red-hot and wrapped in place with tongs, then hammered to shape. It adds structural rigidity without welding and stays visible as a decorative element. Traditional ironwork uses collars wherever one element meets another at a junction that needs to be both strong and decorative.
Rivets. Holes are punched or drilled in the joining pieces, a hot rivet is inserted, and the protruding ends are hammered into domed heads that lock the joint. Visible riveted joints are a hallmark of period wrought iron from the 1800s through the early 1900s.
Forge welds. Two pieces are heated to white heat (around 1,250°C) and hammered together in the solid state. Done correctly, the joint is invisible and as strong as the parent metal. Forge welding is the technique blacksmiths used before arc welding existed, and it still has a place in period-accurate restoration work.
Tenons and wedged joints. A tenon is formed on the end of one piece and fit into a matching mortise in another, sometimes wedged to lock the joint. Common for attaching pickets to top and bottom rails in traditional work.
Arc welds (hidden). Modern hand-forged work often uses small hidden arc welds behind collars or inside the hollow of the element, giving modern structural strength with traditional appearance. We’ve found this is the most honest approach for most heritage-matching restoration work in Vancouver — the exterior looks period-accurate, and the connections meet modern load requirements.
The decorative vocabulary
Where hand-forged railings earn their cost is the decorative vocabulary — the scrolls, twists, finials, and shaped elements that make a handmade piece visually distinct from a fabricated one.
Scrolls and curls. Curved sections of tapered bar formed by heating and bending around a scroll jig or over the horn of an anvil. Scrolls come in a vocabulary of types — C-scrolls (open curves), S-scrolls (compound curves), volute scrolls (tight spirals), and ribbon scrolls (wider flat curves). Each has traditional proportions that a trained blacksmith works to.
Twists. Decorative helical patterns formed by heating a length of square bar and rotating one end while holding the other. Twists come in single twists (one bar, one helix), rope twists (tighter helical patterns), and basket twists (multiple bars twisted around a hollow centre, then spread at the midpoint to form a “basket” shape). Basket twists are a signature of higher-skill blacksmithing and show up on good heritage work.
Finials. Decorative caps at the top of posts or pickets. Common finials include acorns, spears, balls, cones, fleur-de-lis, and pineapples. Each has traditional meaning and specific proportions. On Vancouver heritage projects, matching the finial style to the home’s architectural era is essential — a Georgian-era spear finial on a 1910 Edwardian home looks wrong to anyone who knows the vocabulary.
Rosettes and medallions. Circular or floral decorative elements used to cover joints, mounting points, or transitions. Rosettes hide the mechanics of attachment — where a picket meets a wall mount, where a scroll meets a rail — and add period-accurate detail.
Leaves and botanical elements. Hand-forged leaves (usually oak, acanthus, or holly in the Western tradition) applied to scrolls, post caps, or gate panels. These are the most labour-intensive decorative elements in traditional work — a single oak leaf can take a skilled blacksmith 45 minutes to an hour at the forge.
Spear points and picket tops. Decorative pointed or shaped tops on individual pickets. Common on fence-style railings to deter climbing and add visual rhythm. A simple spear top adds maybe 5 minutes per picket; a hand-forged lily or anchor top adds 20–30 minutes.
How an element is actually made
To give a sense of why hand-forged work costs what it does, consider a single decorative element — a C-scroll with a hammered finish and a collar attachment.
- Cut the bar to length, allowing for taper loss (steel grows when heated and hammered)
- Heat one end in the forge until it’s bright orange-yellow (around 1,100°C)
- Taper the end on the anvil — a series of hammer blows to draw the bar out to a point
- Reheat the section to be curled
- Form the starting curl on the scroll jig or over the horn of the anvil
- Continue forming the curve through multiple heats and adjustments, matching the shape to a template
- Planish the scroll face — light hammer marks across the finished curve for texture
- Cool and check against template
- Forge the collar from a short strip of heated flat bar
- Wrap the collar around the joint and hammer it tight
- Finish the element — wire brush, oil, or passivate depending on final finish
Total time for an experienced blacksmith to produce one C-scroll with collar: typically 20–40 minutes including reheats, plus setup time at the forge. On a railing with 30 scrolls, that’s 10–20 hours of pure forge labour before any welding, assembly, or finishing.
Matching the vocabulary to the project
When we quote a custom hand-forged project out of our Burnaby shop, the first thing we do is match the decorative vocabulary to the architectural era and intent of the building:
- Pre-1910 Victorian and Edwardian homes (Mount Pleasant, West End, parts of Shaughnessy) — elaborate scrollwork, spear finials, leaves, rosettes
- 1910–1930 Craftsman and Arts and Crafts (East Vancouver, South Granville, Grandview) — simpler lines, hammered rails, fewer decorative elements, integrated joinery
- 1930–1960 Art Deco and Modernist — geometric motifs, stylized leaves, cleaner scrolls
- Modern and contemporary homes — welded fabrication with forged accents, minimal decorative language
For a broader view of the techniques that produce these elements, see our forged vs. welded ironwork and heritage ironwork restoration articles. If you want to see the vocabulary in person, the Burnaby shop has hand-forged sample elements on the bench for walk-ins — the difference between a rope twist and a basket twist reads very differently in steel than in a drawing.
